PR series
- Construction
Double piston actuator, rack and pinion design - Standard size
20 actuator sizes - Body
Aluminum alloy - Torques
3 … 13.000 Nm - Pivoting angle
90°, 120°, 135°, 180° - Temperature ranges
-20° … 80°C / -40° … +80°C
-10° … +150°C
PRD series
- Construction
Double piston actuator, rack and pinion design - Standard size
17 actuator sizes - Body
Aluminum alloy - Torque
double-acting: 3 … 6.400Nm
single-acting: 4 … 2.200Nm - Pivoting angle
90°, 120°, 135°, 180° - Temperature ranges
-50° … 70°C / -15° … +160°C
-60° … +200°C

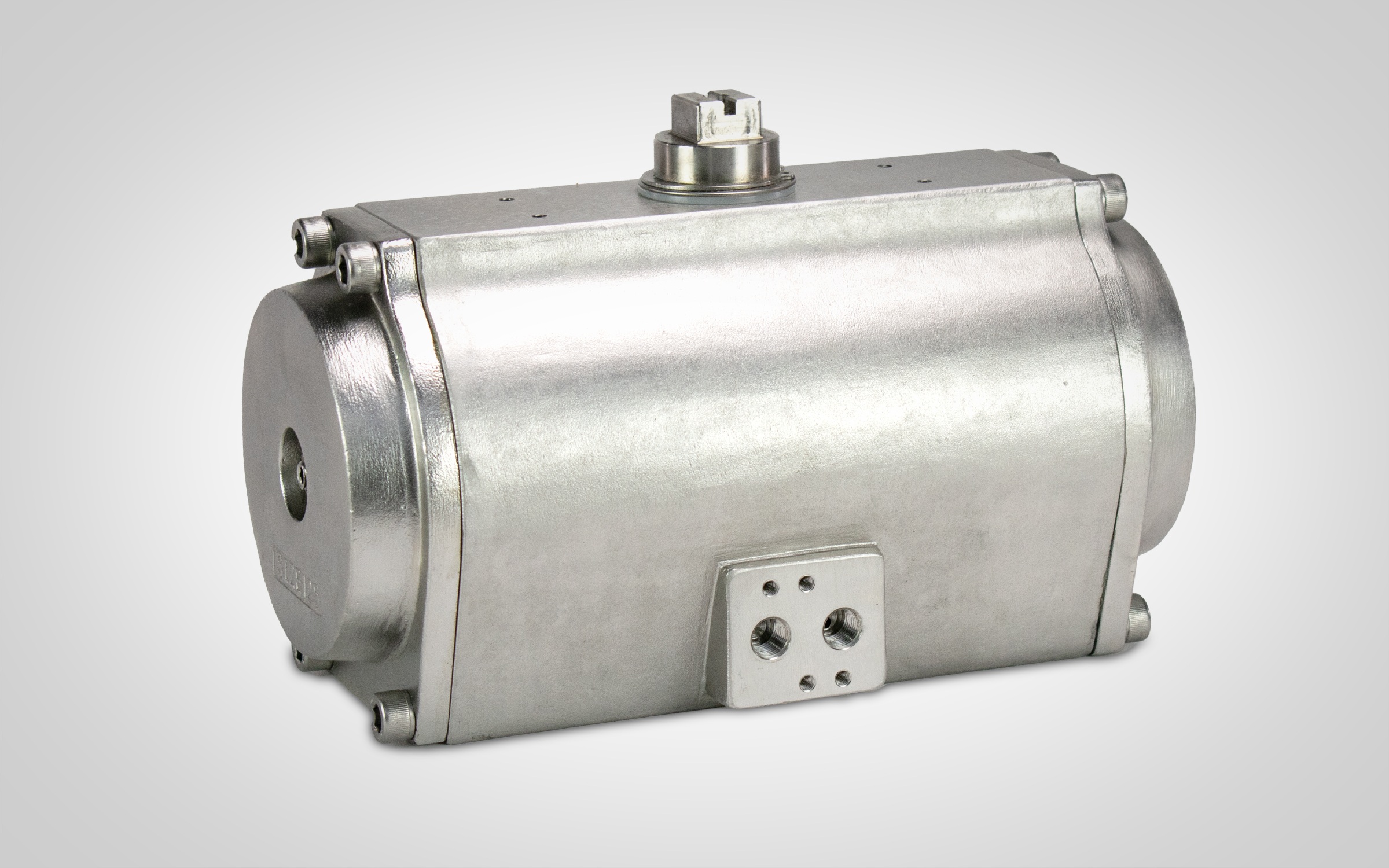

PT series
- Construction
Double piston actuator, rack and pinion design - Standard size
7 actuator sizes - Body
Stainless steel - Torques
double-acting: 6 … 1.069Nm
single-acting: 3 … 335Nm - Pivoting angle
90° - Temperature ranges
-20° … 80°C / -40° … +80°C
-10° … +150°C
PRY series
- Construction
Scotch-Yoke, symmetrical and asymmetrical - Standard size
6 actuator sizes - Body
Steel, anti-corrosion coating - Torques
double-acting: ... 240.000Nm
single-acting: ... 110.000Nm - Pivoting angle
90° - Temperature ranges
-20° … 80°C / -40° … +80°C
-10° … +150°C
