Electric Actuation Technology |EOM series

Top performance for industry

ESA.EFM / ESA.EOM series – Robust electric rotary actuators for up to 20,000 Nm

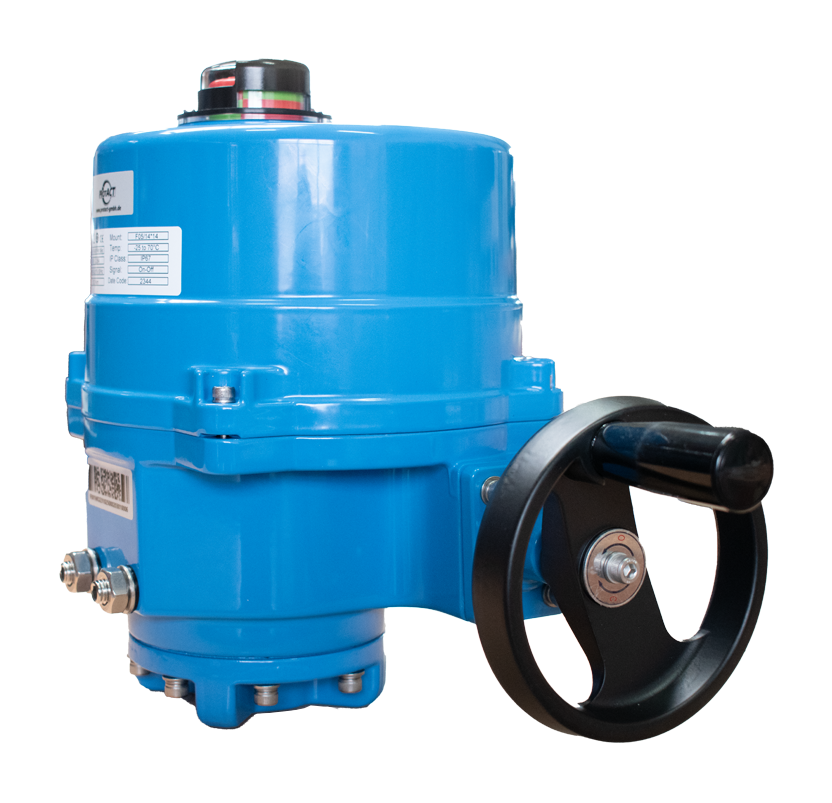

Antrieb Serie EOM

The ESA.EFM/EOM series of electric rotary actuators offer highly reliable automation solutions for an extremely wide torque range of 10 to 20,000 Nm. The product family is divided into compact EFM sizes for smaller valves and high-torque EOM actuators for large-scale industrial applications.

Durable and precisely controllable. Equipped with a robust aluminium housing, mechanical limit stops and an integrated manual override, these actuators guarantee maximum operational reliability. They are available in numerous voltage variants (single-phase, three-phase and 24 V DC) and support both simple ON/OFF applications (duty cycle S2) and demanding control tasks (duty cycle S4-50 %) with control signals such as 4–20 mA or 0–10 V.

Technical Specifications & Key Features

Construction principle

  • Robust electric rotary actuators
  • Aluminium housing
  • Manual override
  • Mechanical limit stops

Nominal rotation angle

  • 90°

Functional & control variants

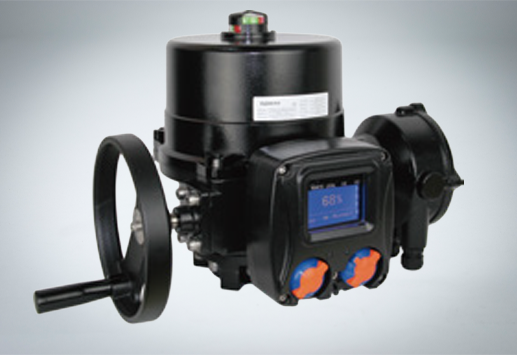

  • Basic · Integral · Integration · Intelligent
  • ON/OFF · regulating
    4–20 mA · 0–10 V · 2–10 V

Supply voltages

  • Single-phase · three-phase · 24 V DC
    Numerous voltage variants available

Temperature range

  • −25 °C ... +70 °C
    Optional −40 °C ... +60 °C

Torque range

  • 10 ... 20,000 Nm

Standards

  • ISO 5211

Operating mode

  • OPEN/CLOSED: S2–15 min
    Control: S4–50 %

Special features

  • Smart design with integrated operating and diagnostic functions
  • Compact EFM sizes and high-performance EOM sizes within a single product family
