ESA.ELM series

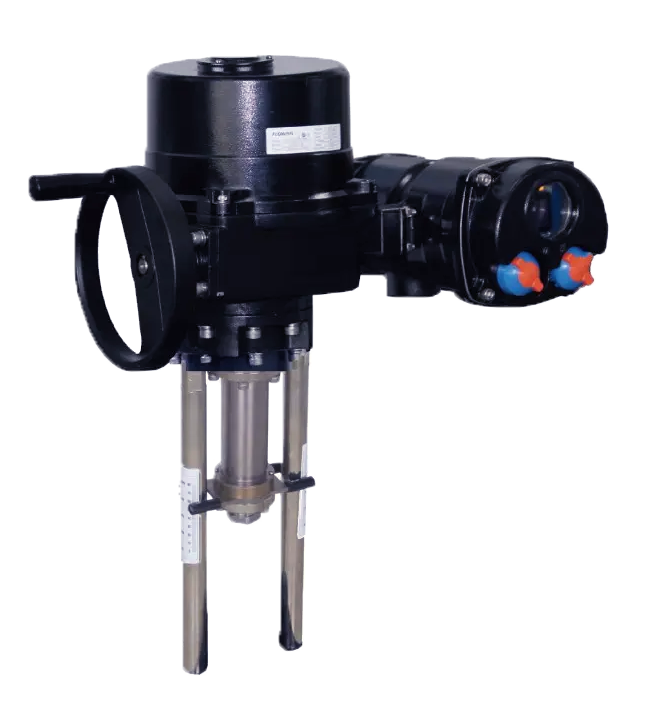

The ESA.ELM linear actuator transmits the rotational force of the motor via a reduction gear and a spindle nut into a thrust force, which ultimately acts on the valve via the output shaft.
The actuator shaft transmits the thrust force from the output shaft via the spindle nut. A single-coil rotary encoder is used as the position detection device. The stroke of the drive is determined by the single-coil encoder. This enables precise positioning of the valve.
Features
An innovative mechanism for professional use
Environmentally friendly technology
User-friendly interface
A wealth of adjustable parameters
Standardised interfaces
Optional portable infrared remote control
Data
Versions
- Basic
- Integrated
- Intelligent
Max. stroke
- 60-100mm
Applicable voltage
Single-phase:
Power supply: (± 10%); Hz (± 5%)
- 50 Hz (24V, 220V, 230V, 240V)
- 60 Hz (24V, 110V, 120V, 220V, 230V, 240V)
- DC: 24V (± 10%)
Temperature range
- -25˚C ... 70˚C
Power output
- ESA.ELM010 - 08: 1.000 - 8.000N
- ESA.ELM100 - 250: 10.000 - 25.000N
Function type
- Type: OPEN/CLOSE
- Type: Modulated
