Pneumatic Actuation Technology |PR series

Maximum process reliability in continuous operation

PR Series Pneumatic Rotary Actuators – Compact actuator technology for the process industry

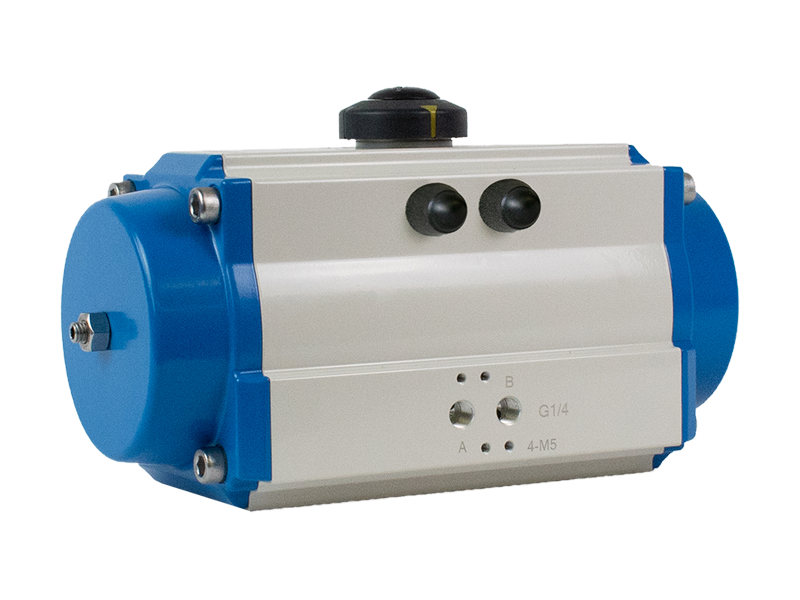

Antrieb Serie PR

The PR series of pneumatic rotary actuators are based on the tried-and-tested rack-and-pinion principle. They offer a durable and reliable automation solution for industrial valves (such as ball valves and butterfly valves) – even under extreme operating conditions in the process industry.

Thanks to their compact housing design, the PR series achieves an optimum ratio of torque to weight. Whether as double-acting or single-acting (spring-return) rotary actuators – the actuators are completely maintenance-free and are characterised by maximum corrosion resistance.

Technical Specifications & Key Features

20 actuator sizes

  • Sizes from PR002 to PR1628

Construction principle

  • Pneumatic double-piston rotary actuator in rack and pinion-design with selfcentering pistons; double- and single-acting execution

Nominal rotation angle

  • 90° resp. 180°
    Adjustable in both end positions +/-5°

    Serial stroke adjustment for switched position up to -20° (optional 100% stroke adjustment)

Control pressure

  • 2,5 ... 8 bar

Torque range

  • Double-acting up to 13,000 Nm
  • Single-acting up to 4,200 Nm

Temperature range

  • Standard: -20°C … 80°C
  • Low temperature: -40°C … +80°C
  • High temperature: -10°C … +150°C

Standards

  • ISO 5211, VDI/VDE 3845 resp. NAMUR

Material

  • Housing: Aluminium, powder-coated
  • Caps: Aluminium, powder-coated
  • Piston: Aluminum
  • Pinion: Carbon steel, nickel plated
  • Bearings: POM
  • Sealings: Standard: NBR optional: HNBR/FP
  • Screws: Stainless steel
