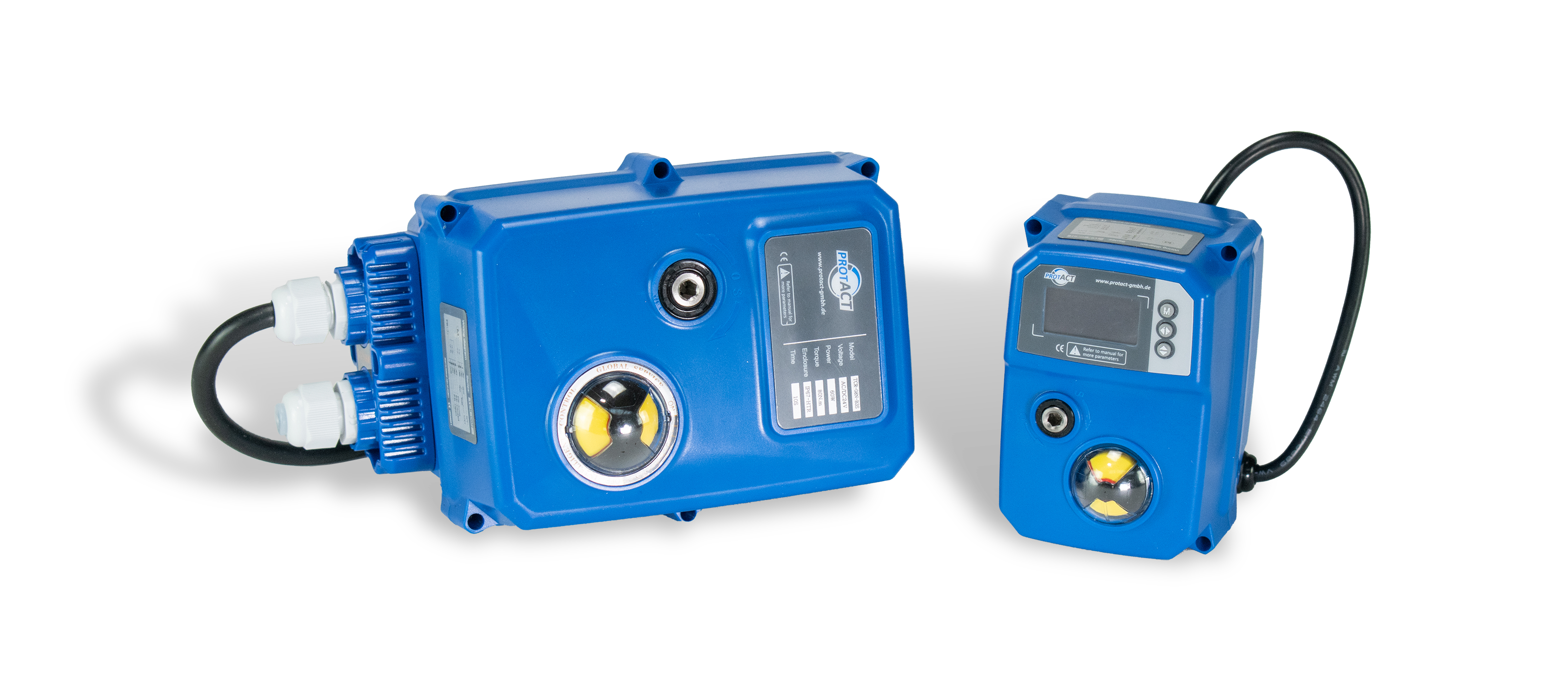

Series ESA.TCR
Compact, intelligent electric rotary actuators

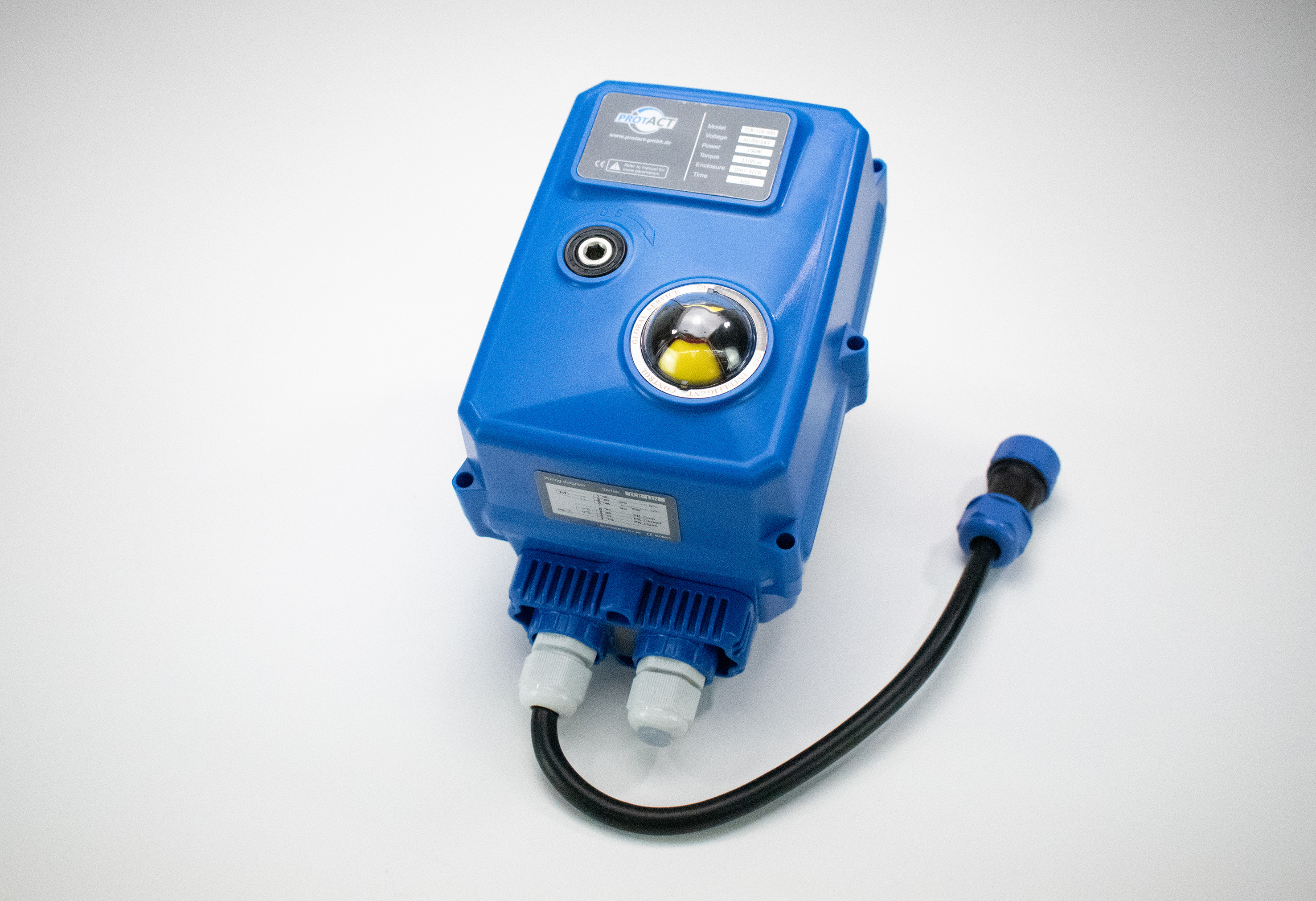

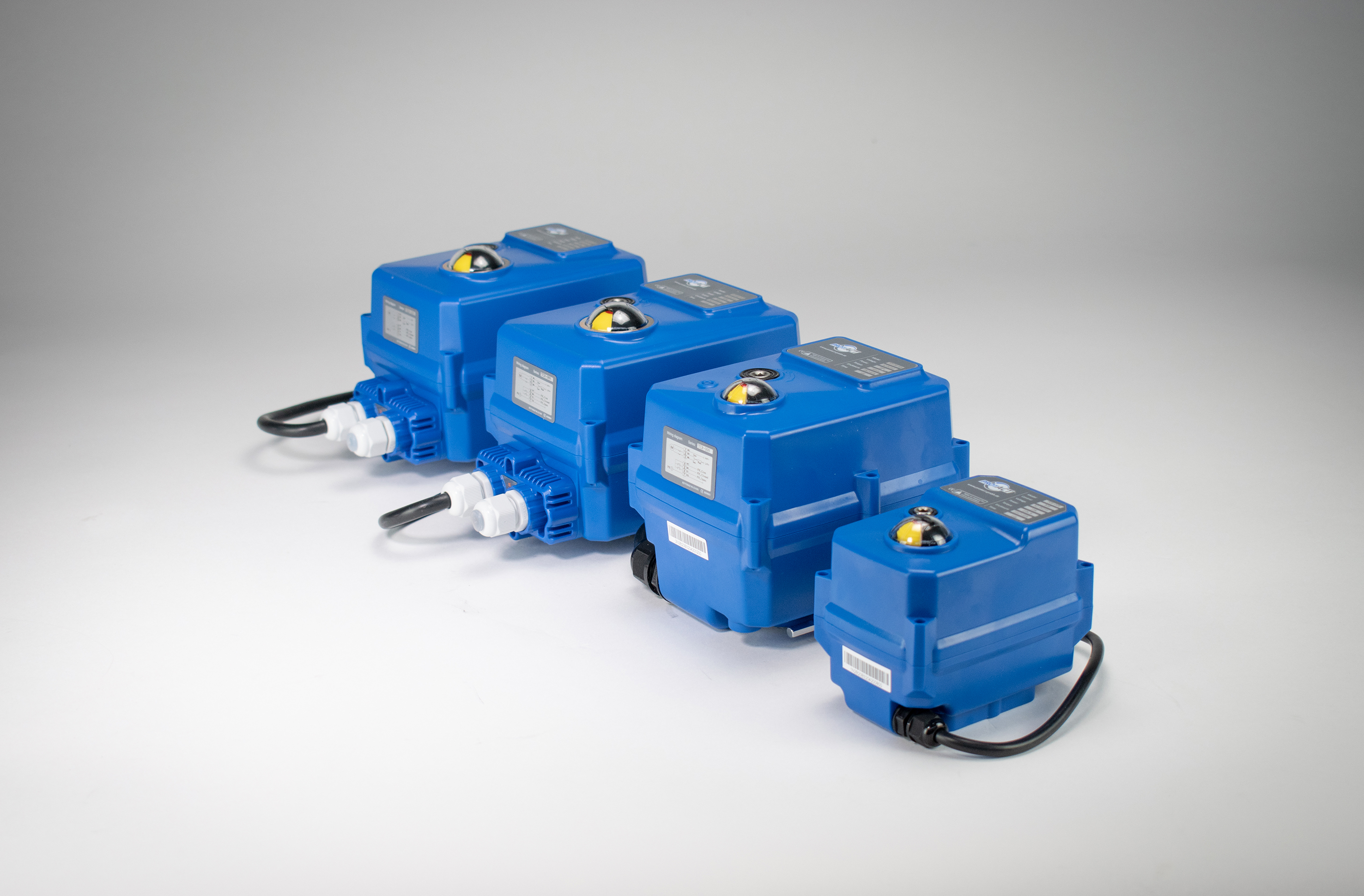

More pictures from the series
Design
Compact electric rotary actuator
brushless motor · overload protection · manual emergency operation
Torque range
10 to 400 Nm
Supply voltages
24 V AC/DC · 230 V AC/DC
wide voltage ranges depending on the model
Functional & control variants
Standard OPEN/CLOSE · Smart OPEN/CLOSE · Smart Positioner
High-speed · Failsafe · Modbus/RS485 · CAN bus
Operating mode
S3-75 % AC
S3-85 % DC
Temperature range
−20 °C to +60 °C
Protection class
IP67
Interfaces / Standards
ISO 5211 · DIN 3337
Special features
SMART operating concept with 1.3" OLED display and 3 buttons
High-speed versions from approx. 1 s / 90°
Failsafe with integrated capacitor energy storage
